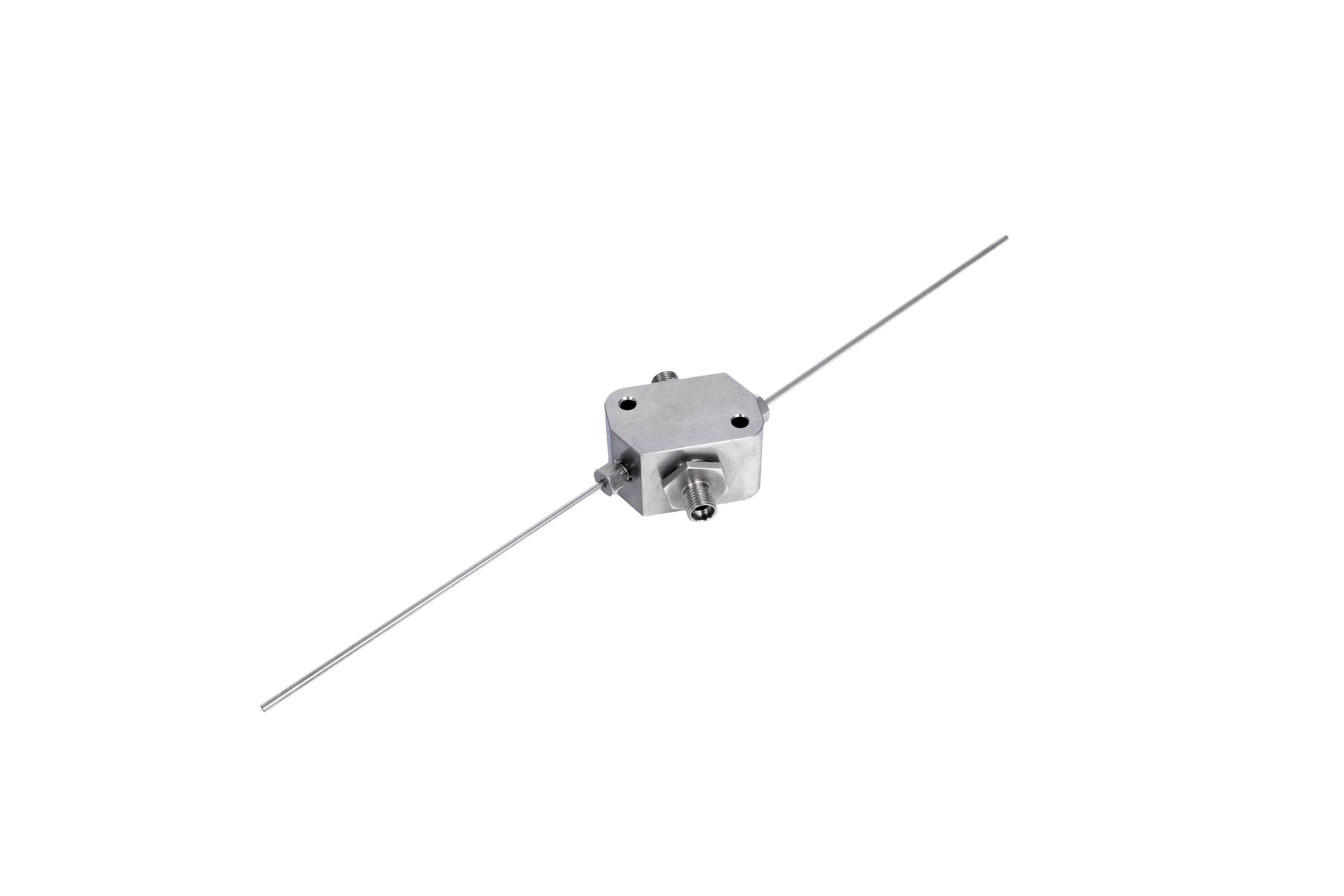

Absorbance
Flow Cell
Made of stainless steel or PEEK
Sapphire windows for extreme chemical resistance
Compatible with standard HPLC fittings
Optional 3‑mm pathlength cell for high-optical-density samples
Maximum efficiency
Measuring the absorbance of fluids moving through a flow system requires the use of special in-line optical flow cells. Sarspec has absorption flow cells with a 10 mm path length that were designed using a Z shape to provide an optimal flow of the fluid, maximum efficiency, and minimum bubble entrapment.
No dilution is required
When using cuvettes, you always have the option to dilute high optical density samples. However, in some applications (for example, industrial dyes), this step is not feasible. For this reason, Sarspec has developed 3‑mm pathlength cells with a more sensitive optical system, ensuring good performance with high optical density liquid samples.
See the video below.
Absorbance and Transmittance Set-Up with Flow Cell
-
An extreme resolution spectrometer that is capable of resolving extremely close spectral features.
-
LS-DW is a compact light source that combines the continuous spectrum of deuterium and tungsten lamps into a single optical fiber SMA connector.
About the
Absorbance Flow Cell
Technical Information
| Wavelength Range | Cell Material | Window Material |
|---|---|---|
| 180 - 2500 nm | Stainless Steel or PEEK | Sapphire |
| Pathlength | Total Internal Volume | Tube Diameter (I.D. - O.D.) |
|---|---|---|
| 10 and 3 mm | 53.4 and 37.70 µL | 0.04”[1.02] - 1/16” [1.59]; 3 mm ID for FC-3 |
| Tube Fittings | Fiber Connection | |
|---|---|---|
| Nuts and Ferrules | SMA 905 |
More information
Ordering Information ↓
| Part Number | Description |
|---|---|
| FCA-SS | Flow Cell for Absorbance in Stainless Steel |
| FCA-PEEK | Flow Cell for Absorbance in PEEK |
| FC-3SS | Flow Cell for Absorbance, 3 mm pathlength in Stainless Steel |
| FC-3PEEK | Flow Cell for Absorbance,3 mm pathlength in in PEEK |
